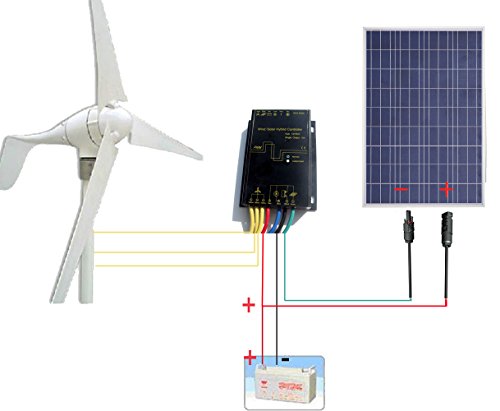

ECO-WORTHY 12 Volt 500W 500 Watt Wind Solar Power System 1pc 12V/24V 400 Watt
- Only suitable for 12V wind solar system, uses wind to generate power and run your appliances and electronics. 24V wind solar system should connect 400w wind turbine to 2pcs 12V panel in series.
- High performance Nylon fibre blades by precision molding injection. Made for both land and marine. Can be used in conjunction with solar panels.
- Wind turbine includes generator, 3 blades, tail and hardware. Salt water corrosion, UV protection coating, high wind speeds with integrated automatic breaking system.
- Salt water corrosion, UV protection coating, high wind speeds with integrated automatic breaking system.
- 100W high efficiency Poly PV solar panel comes with 90cm 12awg cable with MC4 Male/Female quick connectors.
1. 400W Wind Turbine Generator
Electrical Specifications
Rated Power: 400w
Nominal Voltage: DC12-24V
Service Voltage: DC12-24V
Cut-in Wind Speed: 2.5m/s
Rated Wind Speed: 10.5m/s
Maximum wind speed: 35m/s
Rated Rotate Speed : 800r/min
battery capacity: 200AH-400AH
Output Voltage(AC): 110-220V
control system: Automatic fan dedicated controller
Inverter: Pure Sine wave Inverter
Generator style: Permanent-magento-phase A.C
Fan blade quantity: 3pcs
Wind leaf material: Carbon fibre composite
Rotor diameter: 1.2M
Tower diameter: Suggest more than 80 mm
Altitude of towe: 4.5M-10M
Pole diameter: out diameter 7.4cm, inner diameter 5.3cm
Net weight: 1
