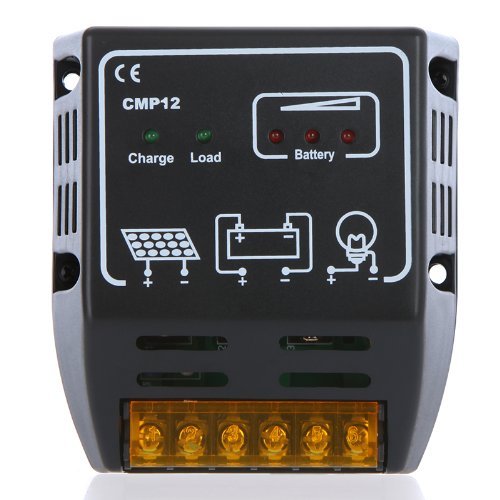

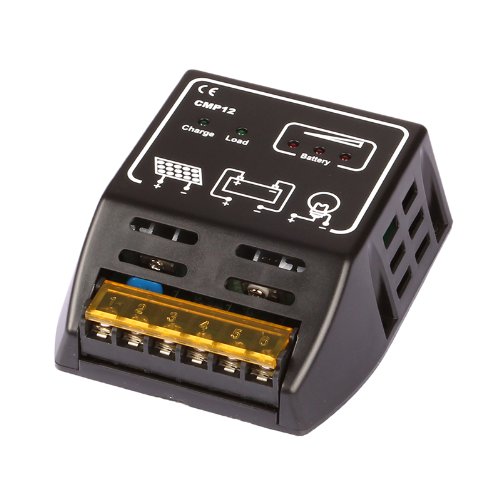

Docooler Solar Charge Controller Solar Panel Battery Regulator Safe Protection
- Automatically manage the working of solar panel and battery in solar system.
- Overloading & short-circuit protection.Reverse discharging & reverse-polarity protection.
- Under-voltage and over-charging protection.
- Protection from lightning strike.Prolong the battery life cycle and keep the load work well.
- Easy to set up and operate.Suitable for small solar energy system.
The product can automatically manage the working of solar panel and battery in solar system. It is easy to set up and operate.
Specification:
Color: Black
Rated voltage: 12V or 24V
Rated charging current: 10A
Rated load current: 10A
Voltage of stop power supply: *10.8V or 21.6V
Voltage of resume power supply: *11.8V or 23.6V
Voltage of stop charging: *14V or 28V
Working temperature: -20 ~ +60¡ãC
temperature coefficient of voltage stop charge: -3mV / ¡ãC / cell
Item size: 10.2 * 9.5 * 3.8cm / 4 * 3.7 * 1.5in
Item weight: 132g / 4.7oz
Package size: 11.5 * 10 * 4cm / 4.5 * 3.9 * 1.6in
Package weight: 136g / 4.8oz
- Rated voltage 12V or 24V Voltage of stopping power supply 10.8V or 21.6V
- Rated charging current 10A Voltage of resurne power supply 11.8V or 23.6V
- Rated load current 10A Charging stops voltage 14V or 28V
- Operating Temperature -20 ~ +60 ? Stop charging voltage temperature coefficient -3mV / ? / cell
- Dimensions (L × W × H) 101 × 95 × 35 mm Net weight 120g
Functions:
* Over-load protection
* Short-circuit protection
* Lightning protection
* Reverse discharging protection
* Reverse-polarity protection
* Under-Voltage protection
* Over-charging protection
Instructions：
1. Attention: PLEASE CONNECT THE BATTERY FIRST
2. Open the top cover of controller,connect the wire and terminals of controller
according to the drawing on the top cover of controller.
3. Connect the “+”,”-” poles of the battery to the correct ports of controller (3th
& 4th one from left)
4. If load indicator(“load”) flickers once and starts lightning after 30s,you
can tell the connection is correct;the following operation can be
proceed,otherwise,the f
