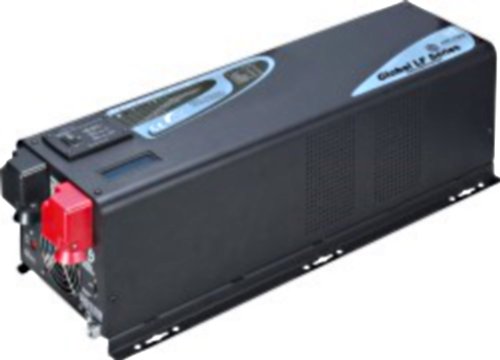

3000 Watt Pure Sine Low Frequency Solar Inverter Charger – 12 Volt

• 3000 watt low frequency inverter
• 9000 watt surge for 20 seconds – 3x surge capability
• Battery Priority Selector
• Terminal Block
• GFCI

Features:

3000 watt low frequency inverter

9000 watt surge for 20 seconds -3x surge capability

Battery Priority Selector

GFCI

Marine Coated/Protected

Multi Stage Smart charger 65 Amp

MPPT solar charge controller – PV in 15-30Vdc

auto gen start and frequency




Inverter Output Specifications:

Continuous Output Power: 3000 Watts

Surge Rating: 9000 Watts (20 Seconds)

Output Waveform: Pure Sine/Same as input (Bypass Mode)

Nominal Efficiency: greater than 88% (Peak)

Line Mode Efficiency: greater than 95%

Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz

Typical Transfer Time: 10ms (Max)

THD: less than 10% DC




Input Specifications

Nominal Input Voltage: 12.0Vdc

Minimum Start Voltage: 10.0Vdc

Low Battery Alarm: 10.5Vdc-11.0Vdc

Low battery Trip: 10.0Vdc-10.5Vdc

High Voltage Alarm: 16.0Vdc

Low battery Voltage Restart: 15.5Vdc

Idle Consumption: less than 10 amp
